FA1000 - FA1500
Characteristics

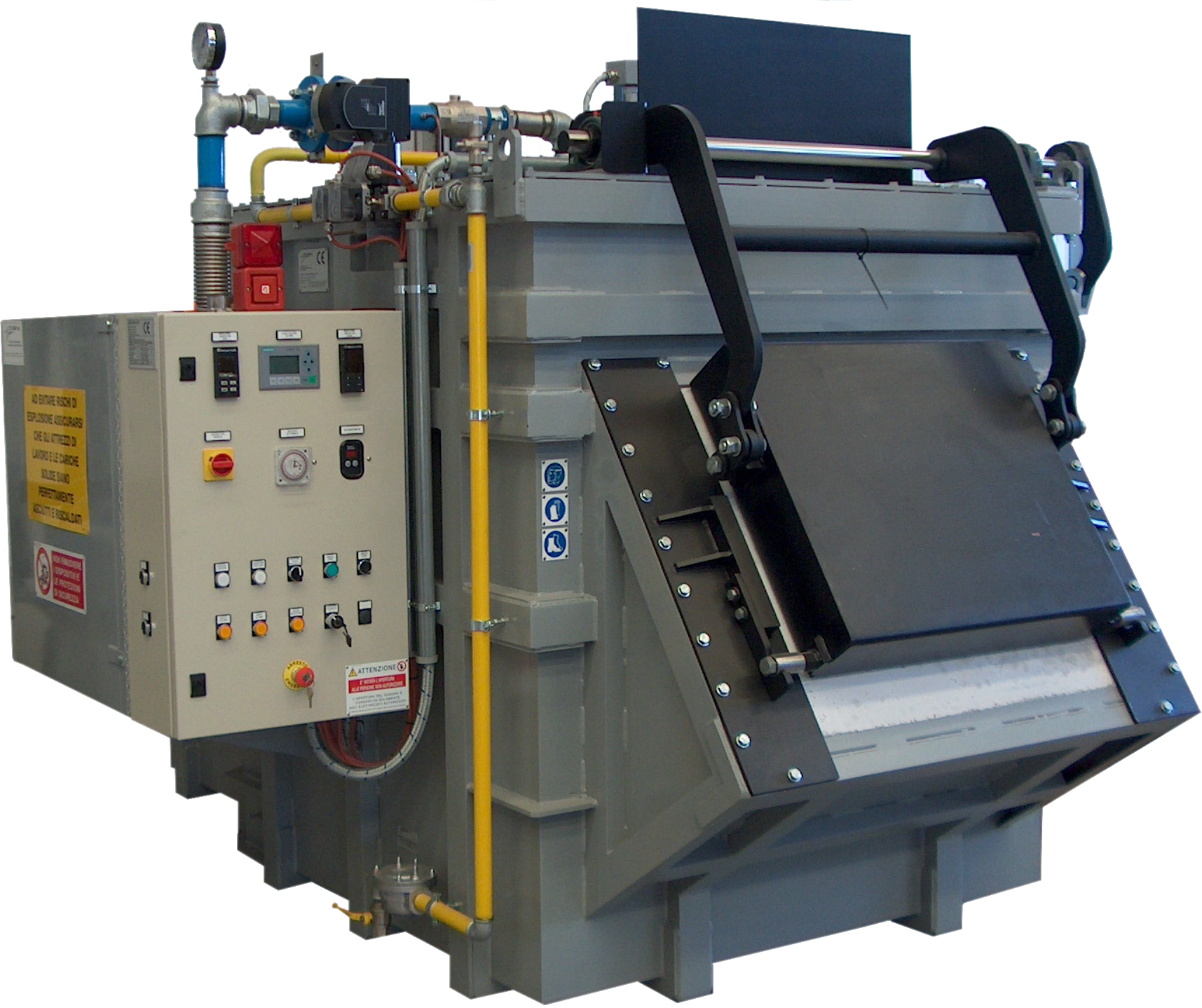

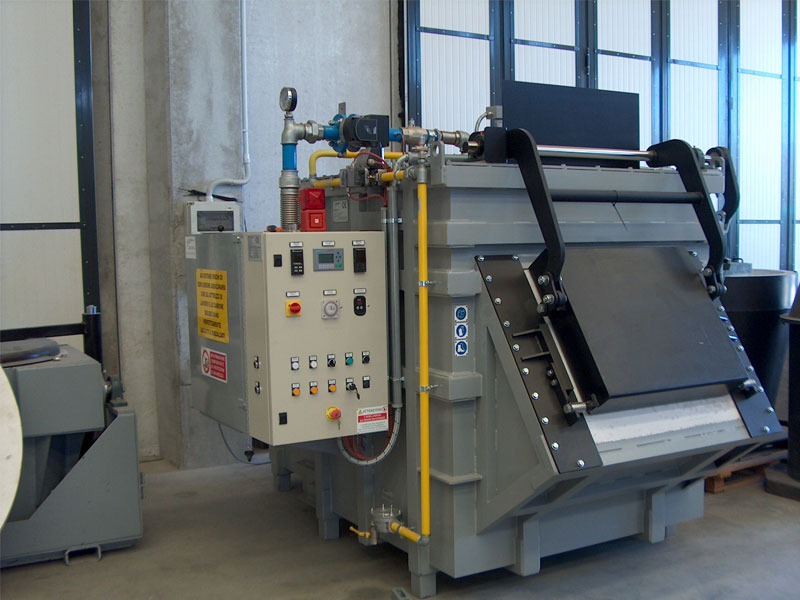

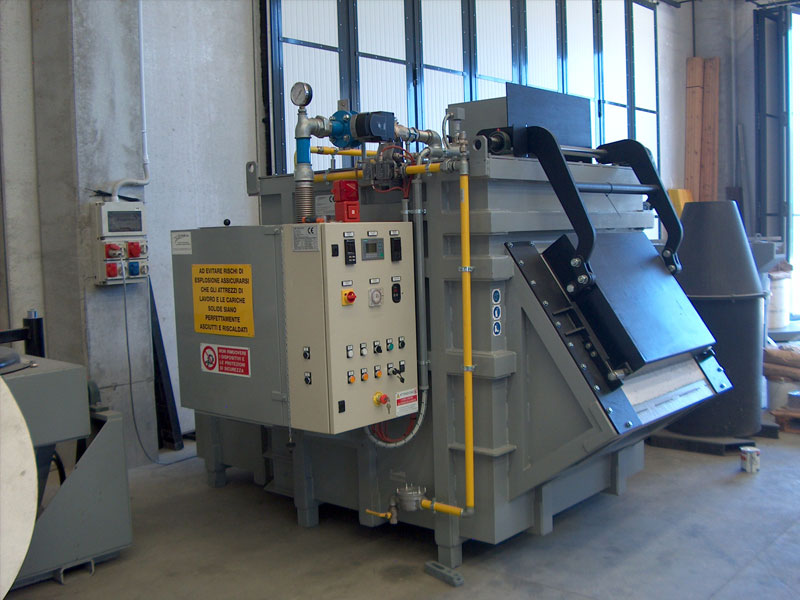

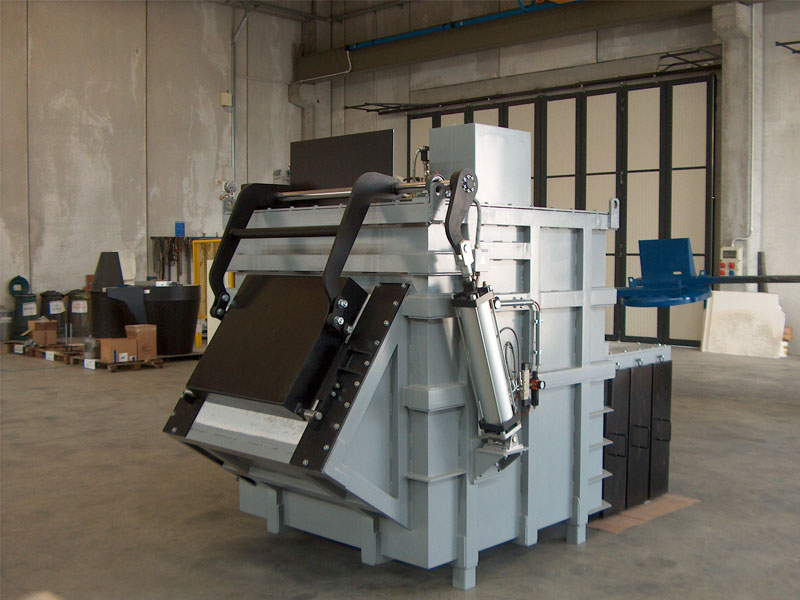

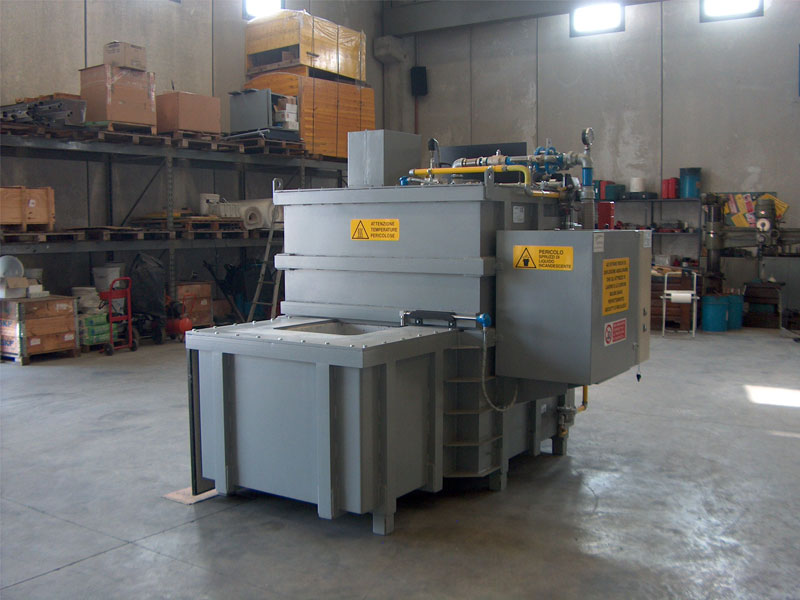

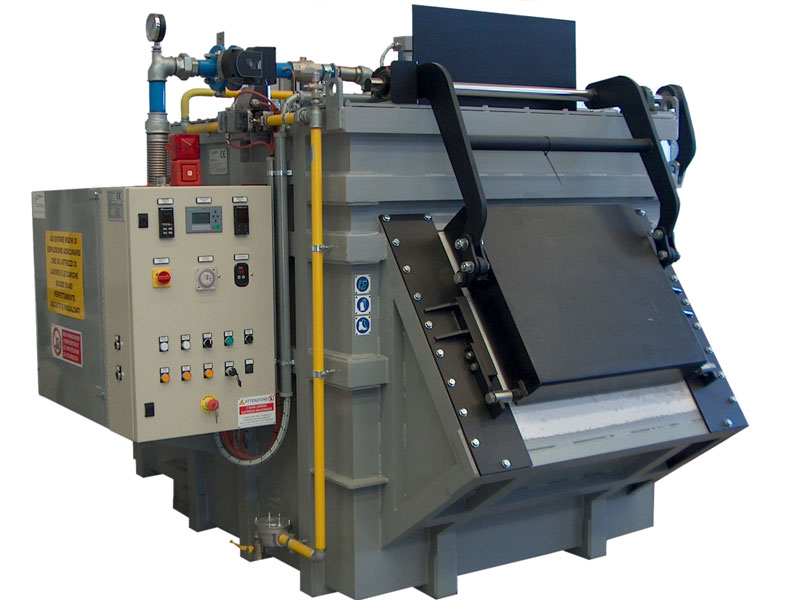

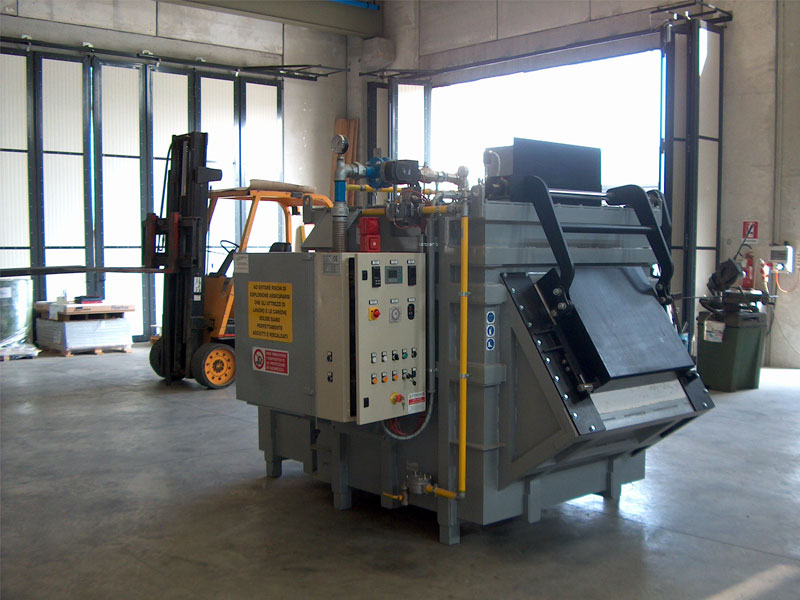

Bath furnace with gas combustion for holding at casting temperature of aluminium and its alloys.| Option 1 | |
|---|---|
| Capacity | 1500 Kg molten aluminium |
| Option 2 | |
| Capacity | 1000 Kg molten aluminium |
| Max bath temperature | 800 °C |
| Max refractory temperature | 1000 °C |
| Combustible gas | Natural gas - Gpl on request |
| Number of burners | 1 |
| Burner type | Flat flame - max rating 130.000 Kcal/h |
| Installed power management | From 0 to 100% with limit of maximum |
| Power supply | Threefase, 400 V / 50 Hz / 3Kw |
| Auxiliary services | 110 V C.A. (Left out starting UV probes, working at 220 V A.C.) |
| Gas pressure feeding | From 100 mbar to 500 mbar |
| Holding consumption | 3 Nm3/h |
| Weight | 6500 Kg |
| Continued and automatic control of molten aluminium temperature, by thermoregulator with thermocouple in the bath | |
| Thermo-limit of refractory temperature by thermoregulator and thermocouple in the wall | |
