FA7
Characteristics

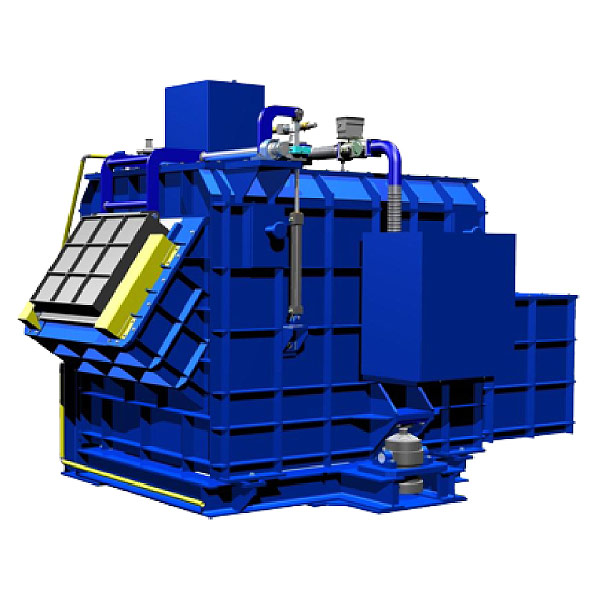

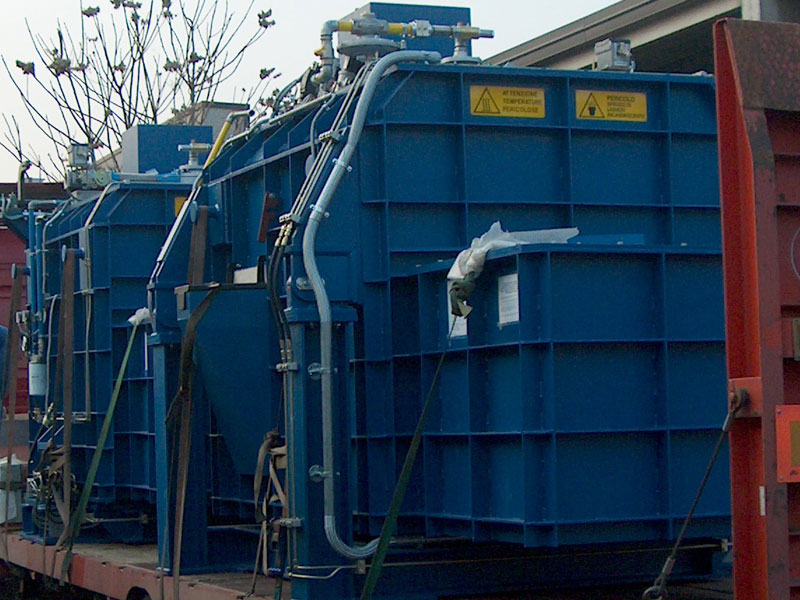

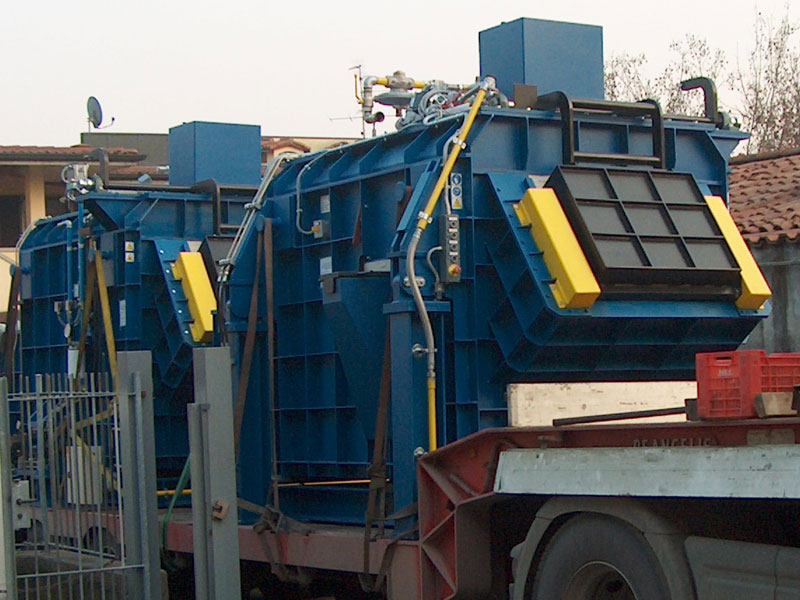

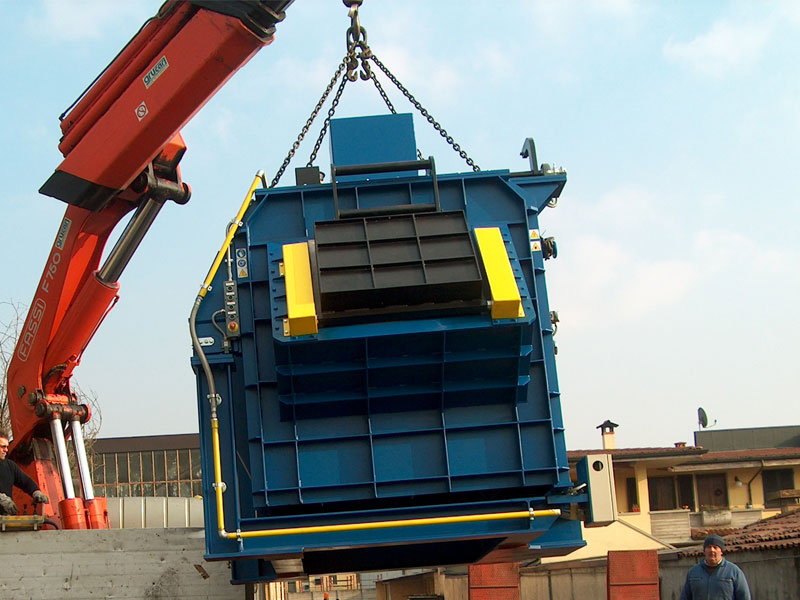

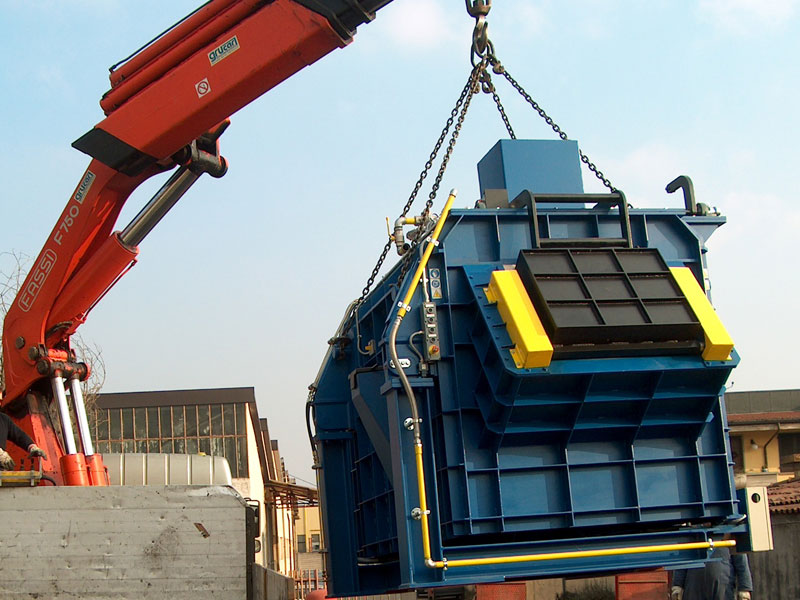

Gas holding furnace, capacity 3000 kg of melt Al alloys.Designed for quick changes to speed up the emptying of liquid alloy, for frequent Al alloys change, has a exit neck with discharge axis coaxial with the pins pulled to shift for maximum accuracy of the operation of the liquid metal transfer.
The advance management of the combustion plant is based on automatic and continuous adjustment of the temperature of the liquid aluminium integrate with the submerged thermocouple in the liquid bath, that ensures high yield, maintaining stable around on the set point set the temperature of the cast alloy in the external bowl. The wide front door automatic opening facilitates the loading operation, drossing off and cleanliness.
Both hydraulic cylinders how lifting and tilt the furnace, and opening the door, have locking valves to prevent falls in the event of breakage of hydraulic circuit hoses.
| Tank capacity | 3000 Kg molten aluminium |
| Melting capacity | ~300 Kg / h |
| Max bath temperature | 800 °C |
| Max refractory temperature | 1000 °C |
| Combustible gas | Natural Gas - GPL on demand / Press. min. 100 mbar |
| Number of burners | 1 |
| Max rating | 300.000 KCal/h |
| Max consumption | 35 m3 / h (Natural Gas) |
| Consumo specifico | ~100 m3 / Ton (Gas naturale) |
| Installed power management | from 0 to 100% with limit of maximum |
| Power supply | Three-phase, 380 V / 50 Hz |
| Auxiliary services | 24 V C.C. / C.A. - 110 V C.A. (Left out UV probes, working at 220 V A.C.) |
|
Continued and automatic control of molten aluminium temperature, by thermoregulator with thermocouple in the bath
|
|
|
Thermo-limit of refractory temperature by thermoregulator not visualized and thermocouple in the wall
|
|
