In-line degasser

LD3

Characteristics

In-line degasser, medium capacity, for the continuous refining of liquid metal in transit on the line.
It's located between the casting furnace and the CC or DC casting unit. The unit has 2 separate zone, the degassing chamber and the heating chamber. The degassing operation is achieved by micro inert gas bubbles homogeneous introduced into the metal bath by a rotating lance with its proper rotor in the bottom. The high efficiency on heterogeneous inclusions removal, like Al₂O₃ compounds, skin, SiO₂ compounds, carbides, and dissolved contaminant gas removal, like H₂ ( in generally term, refining treatment) is directly proportional to the finest inert gas bubbles. The submerged heating element is placed in the heating chamber; the advantage is to

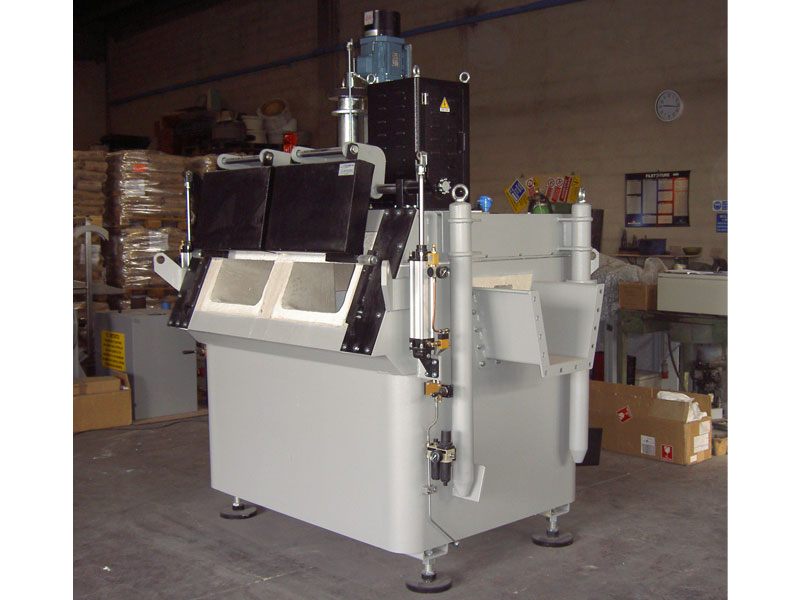

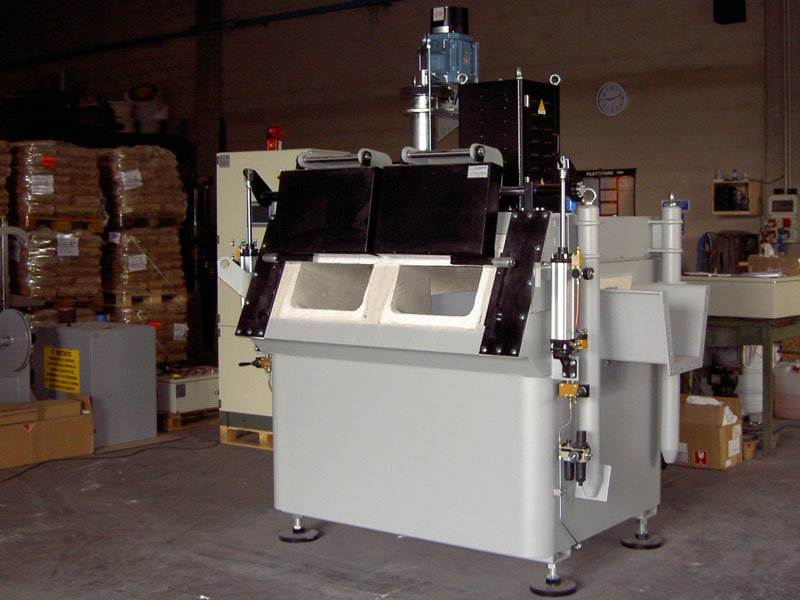

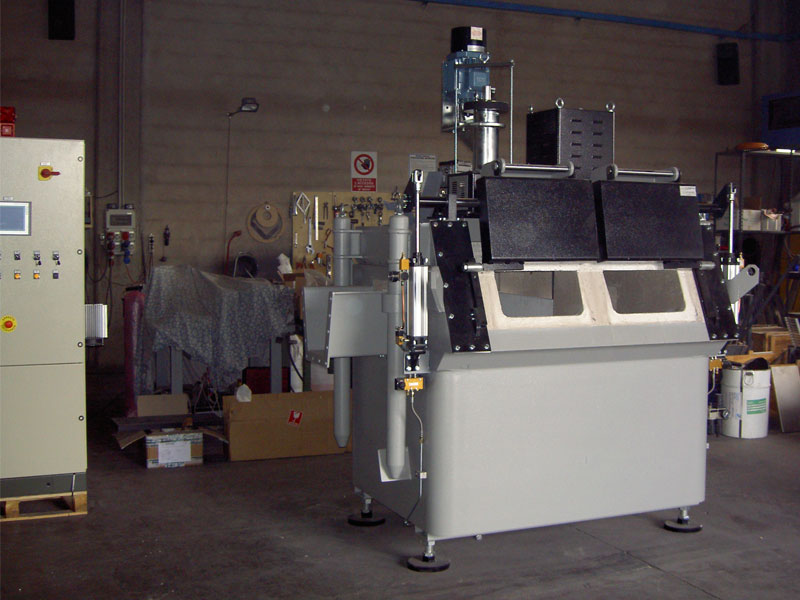

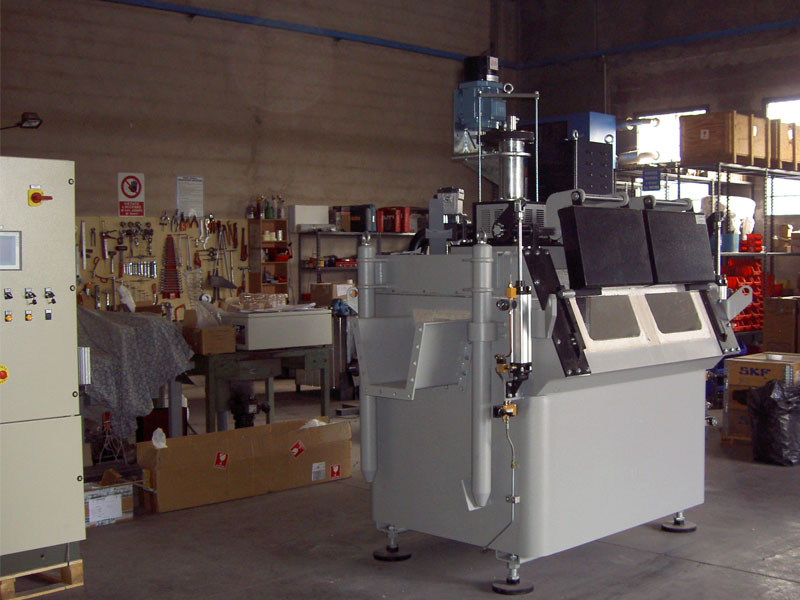

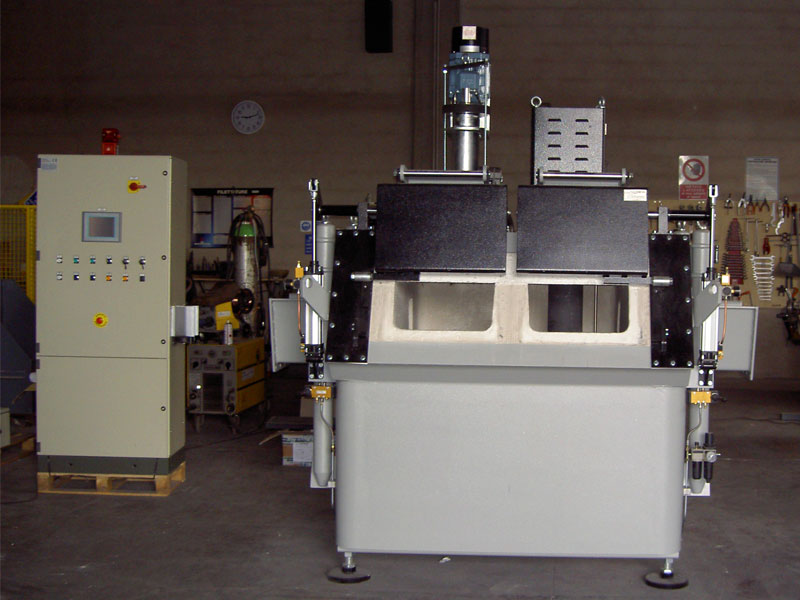

keep the metal in temperature in the stand by period in the DC cast house, (between the production drop casting sequence), and guarantee a better metal temperature control. The external protective Silicon Carbide sheet, ensure long life use. Two independent inspection doors, facilitate the cleaning and control operation of the two chambers. Automatic control of internal furnace atmosphere, guarantee low eternal admission fresh air, guarantee low oxidation, and keep a protective internal condition, with a better Metal temperature control and set up, with lower energy consumption. For any maintenance necessity, both groups, impeller rotating and electric heater, can remove separately in a short time. The unit can be supplied in 2 version: perpendicular entry-exit, or in line (the pictures show the version perpendicular entry-exit)

Capacity of the vessel, in holding	1000 Kg of liquid Al alloys
Bath max temperature	800 °C
Refractory max temperature	1000 °C
Installed power	25 KVA
Electric connected power	400 V
Installed power management	From 0 to 100% with limit of maximum
Weight	4400 Kg
Continued and automatic control of molten aluminium temperature, by thermoregulator with thermocouple in the bath
