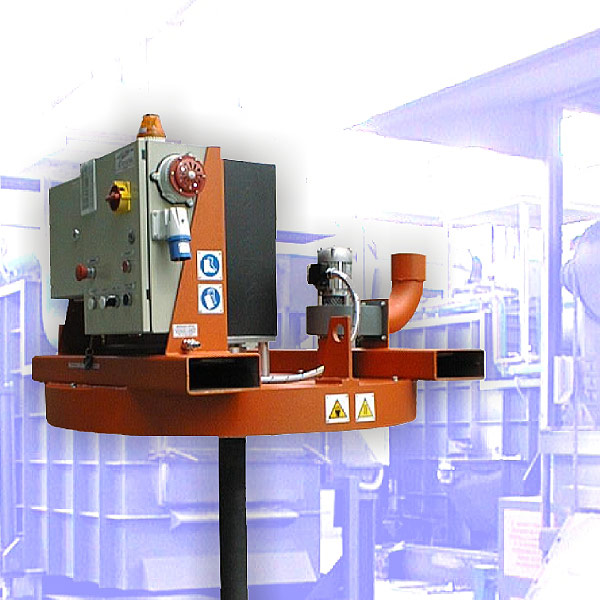

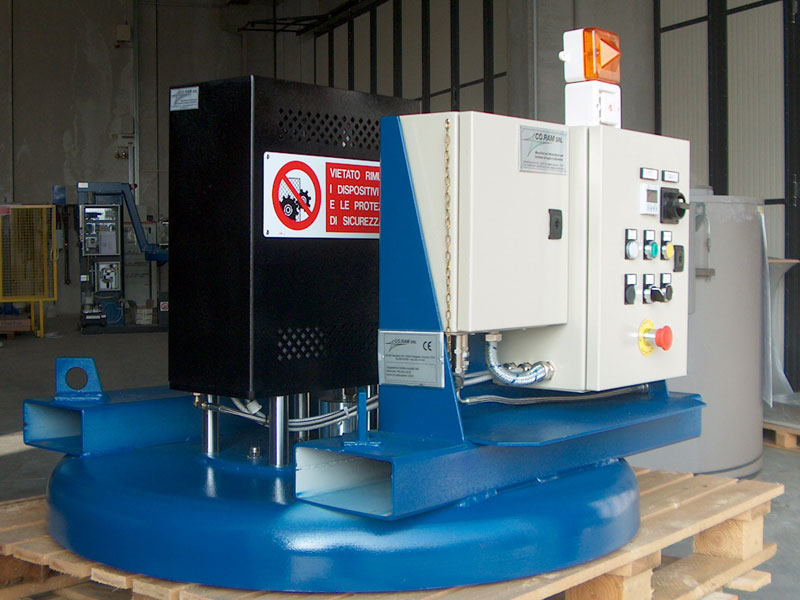

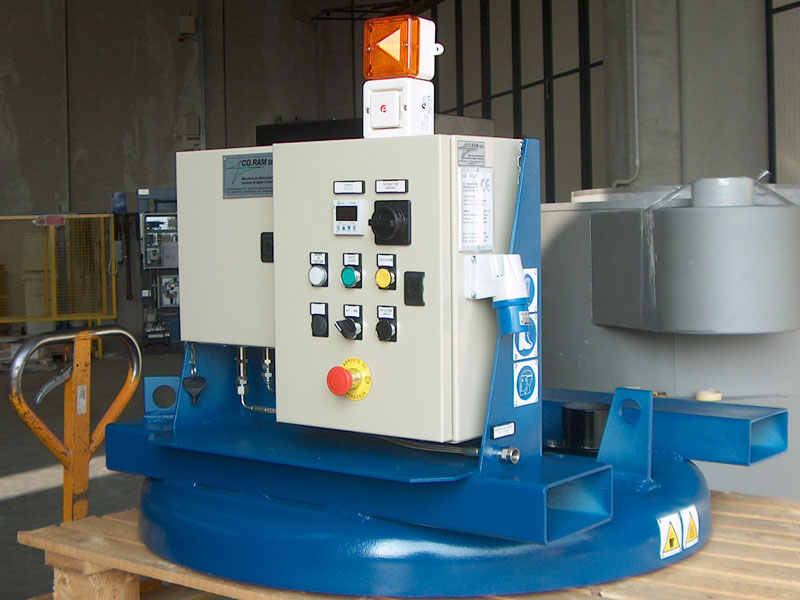

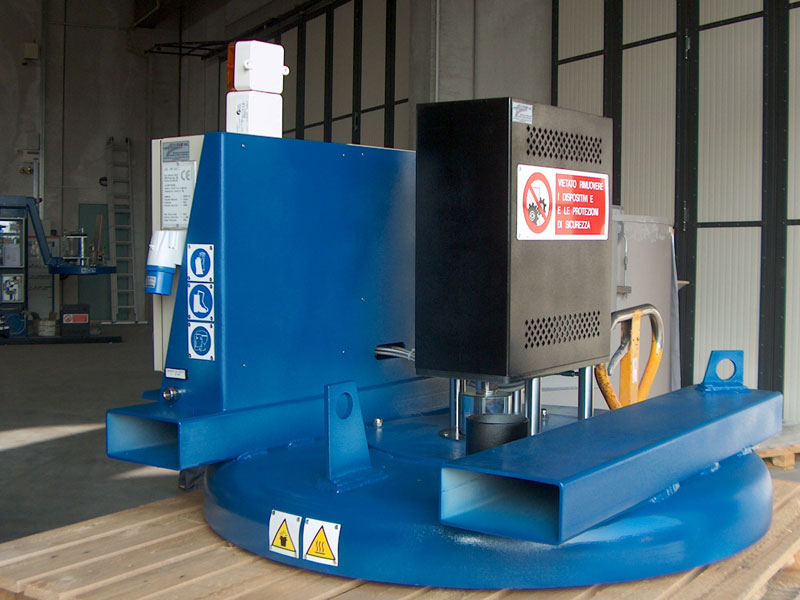

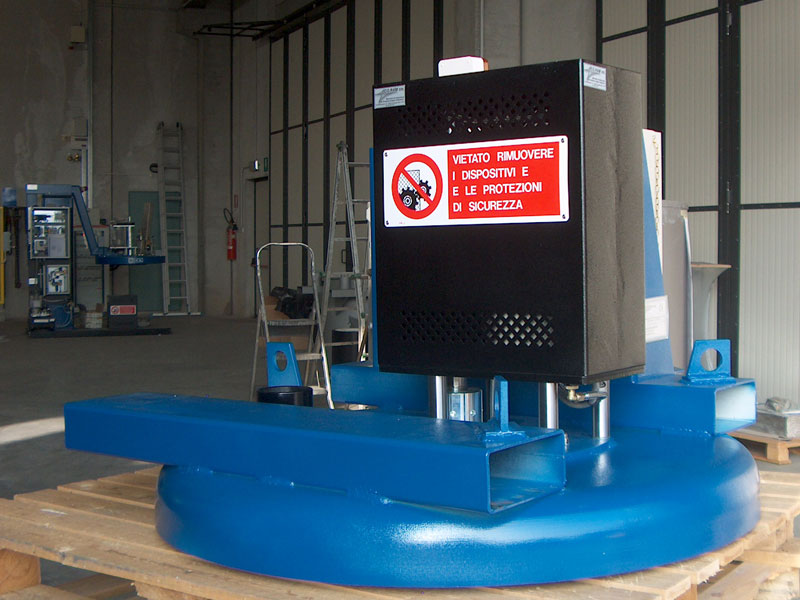

Degassing plant

Constructive particulars

The plant is realized for heavy use in foundry: both of electric and pneumatic plants are closed in a dedicated hermetical and metallic cupboard, to preserve components from aggressive environment present in foundry, in the best way, above the ladle. All the flexible tubes used in the plant are provided with inox steel to avoid being damaged by some spots of molten metal. Also the mechanic part is closed inside a carter for safety and for protecting from external elements. All the mechanic parts are zinced for further protection against corrosion. All the inferior part of plant is full by 100 mm of insulator, to isolate mechanic and engineering parts from heat, it realizes a half closing when the plant is set down on ladle or furnace.

Application

For every kind of aluminium alloys and others. Treatment capacity: ladles or furnaces till 3000 kg capacity.

Thecnical characteristics
Weight for transport	260 Kg
Dimensions	1010 x 1000 x 675
Necessary service lines	Voltage 220 V - 50 Hz Inert gas - pressure min. 4 bar
Speed rotation range: from 200 to 400 rpm, by potentiometer in console
Progressive starting and stopping rotation, with programmed steps on inverter: starting rotation in 5 seconds, stopping rotation in 10 seconds
