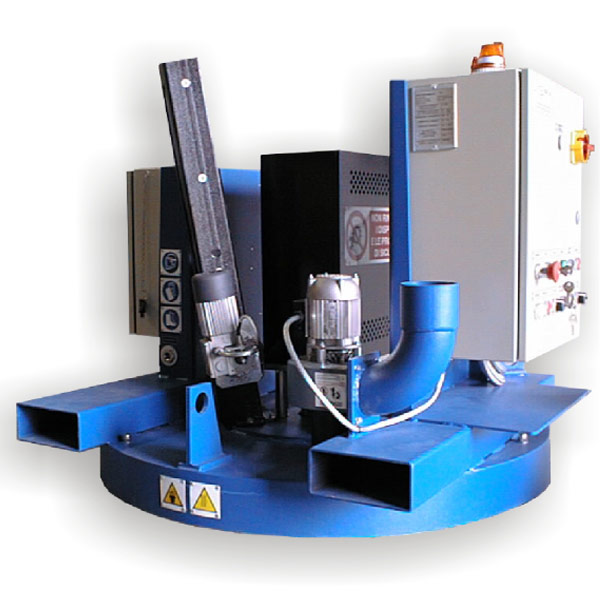

Degassing/Refining plant

flux necessary for customer request. These capsules are of aluminium, hermetically sealed, can contain salts, refining substances, sodium or mix of different elements for every metallurgic requirement. This is the peculiarity of this plant: using right expedients during lance building and a complex program rotation management, it can sink the capsule on the bottom of landle, before the aluminium can melts itself and disperses its contained homogenously and rationally in the low/central zone of bath. The immediate and homogenous dispersion of contained elements is realized with great efficiency by centrifugal force generated by lance rotation. All the process parameters, as quantity and kind of capsules, times and rotation speed are completely programmable; you have 99 working programs so to process different alloys and to work in different conditions

The advantages of this system can be translated into:

• High flexibility, due to the possibility of dosing different products, distributed in the form of capsules easily identifiableand manageable.
• Elimination of problems related to the diffusion of salts coaxially to the lance, as the merger of these that hopelessly clogged the lance, for the same reason you can use chemicals products with low melting point, which have an immediate dissemination to domestic league.
• Handling and storage of the same, as pre-packaged in sealed containers do not require special attention, are easy and economical to handle and store.

Mechanic characteristics
Lance speed rotation	183-427 giri/min
Plate diameter	1000 mm
Dimensions and weight
Length	1010 mm
Width	1050 mm
Height (left out lance)	900 mm
Machune weight	280 Kg
Electrical characteristics
Supply voltage	V. 400 + 50 Hz
Nominal current in the board	A. 4.5
Protection degree	IP 55
